Apt Air Compressor APT 185APT 250-150APT 300-100APT 400-100APT 400-150 Free Air Delivery - CFM  185  230  272  .. Product #: APTCO

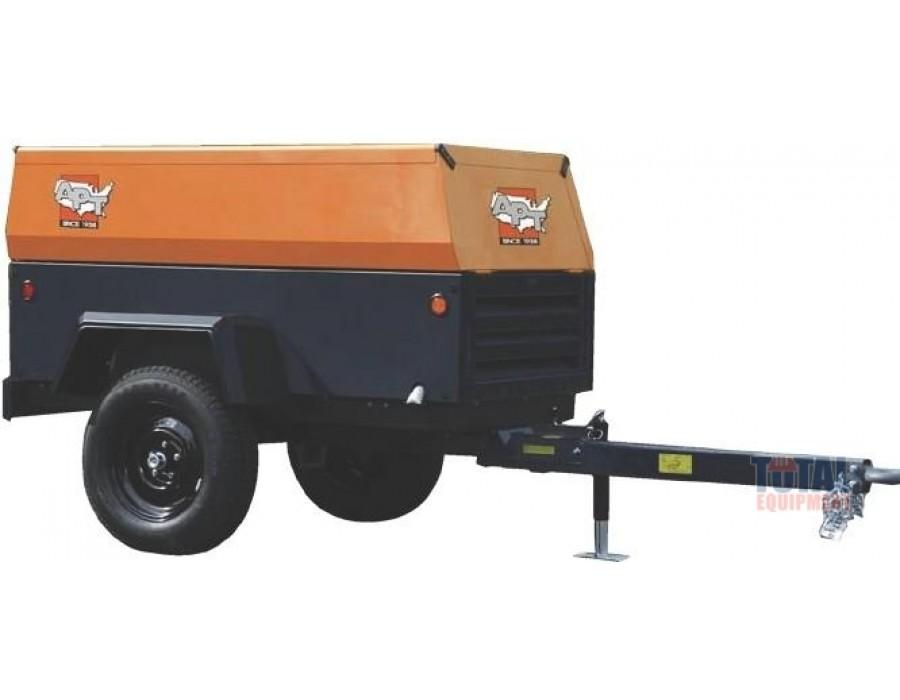

Air Compressor

Item Specs

Item id: APTCO

Model: APTCO

Year: New

Location: Call Us


Contact: 305-343-9099

Need more information call us 1-844-868-2537 or email us: info@tercorp.com

APT 185APT 250-150APT 300-100APT 400-100APT 400-150
Free Air Delivery - CFM  185  230  272  400  400
Working Pressure - psi (Bar) 100 (7)  150 (10)  100 (7)  100 (7)  150 (10)
Pressure Range - psi (Bar) 58-125 (4-8.6)  58-175 (4-12)  58-125 (4-8.6)  58-125 (4-8.6)  58-175 (4-12)
Discharge Outlets 2 @ 3/4"  1 @ 1.5" & 2 @ 3/4"  1 @ 1.5" & 2 @ 3/4"  1 @ 1.5" & 2 @ 3/4"  1 @ 1.5" & 2 @ 3/4"
Oil Capacity - Gal (L) 2 (7.6)  6.25 (23.6)  6.25 (23.6)   6.25 (23.6)   6.25 (23.6)
Engine Make John Deere  John Deere   John Deere   John Deere   John Deere
Displacement - L 2.4  4.5  4.5  4.5  4.5
Cylinders
EPA Tier iT4  iT4   iT4   iT4   iT4
HP 49  74  74  115  125
Rated Speed (High) - RPM 2750  2400  2400  2400  2400
Rated Speed (Low) - RPM 1600  1500  1500  1500  1500
Fuel Tank Capacity - Gal (L) 25 (96)  40 (151)  40 (151)  58 (219)  58 (219)
Fuel Consumption @ 100% load
Gal/hr (L/hr)
2.9 (10.9)  4.1 (15.5)  4.1 (15.5)  5.92 (22.4)  6.47 (24.5)
Fuel Autonomy @ 100% load - hr
Sound Pressure Level
@23' (7m) @ 75% load - dBA
76  76  76  76  76
Trailer Dimensions (LxWxH) - in. 125 x 60 x 57  152 x 72 x 69  152 x 72 x 69   152 x 72 x 69   152 x 72 x 69
Weight (Wet) - lbs (kg) 2,400 (1,018)  3,900 (1,770)   3,900 (1,770)  4,105 (1,862)  4,105 (1,862)
Support Mounted (LxWxH) - in. 77 x 41 x 64  104 x 58 x 64  104 x 58 x 64   104 x 58 x 64   104 x 58 x 64
Weight (Wet) - lbs (kg) 2,200 (1,000)  4,000 (1,815)  4,000 (1,815)  4,225 (1,916)  4,225 (1,916)
