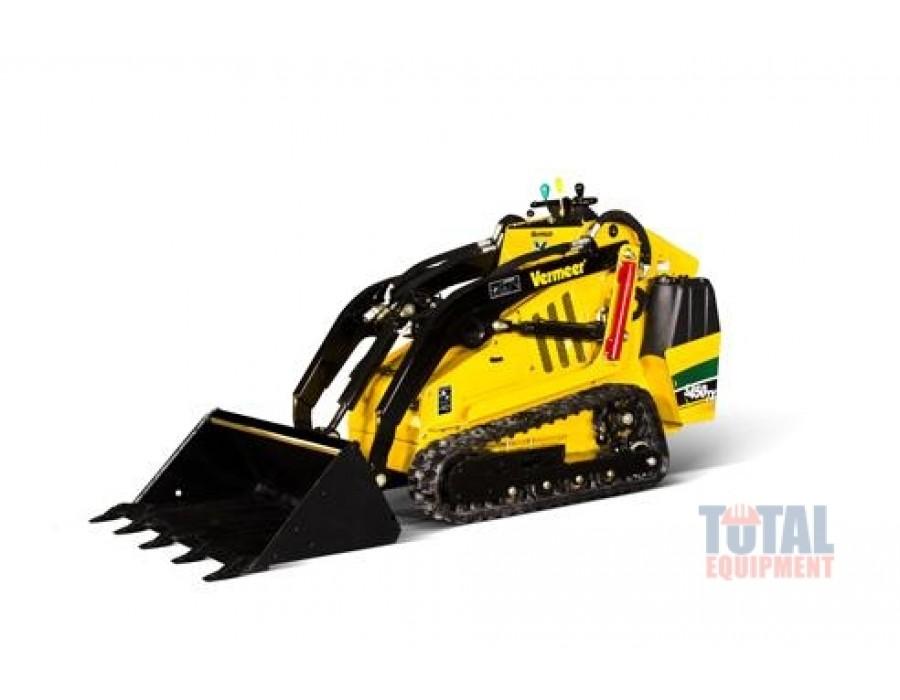

    Vermeer S450TX General Dimensions and Weights Design Stand-on / track-d.. Product #: VS450TX

    S450TX

    Item Specs

    Item id: VS450TX

    Model: S450TX

    Year: New

    Location: Call Now


    Contact: 305-343-9099

    Ask Question

    Need more information call us 1-844-868-2537 or email us: info@tercorp.com

    General Dimensions and Weights
    Design Stand-on / track-drive
    Length with Standard Bucket 95.4 "
    (242.3 cm)
    Length without Standard Bucket 75.4 "
    (191.5 cm)
    Width with Standard Bucket 42 "
    (106.7 cm)
    Width Without Standard Bucket 35.8 "
    (90.8 cm)
    Height 53.4 "
    (135.6 cm)
    Height (to Hinge Pin) 72 "
    (182.9 cm)
    Ground Clearance 6.5 "
    (16.5 cm)
    Weight (Standard Bucket, Diesel Engine) 2430 lbs
    (1102.2 kg)
    Weight (No Bucket, Diesel Engine) 2300 lbs
    (1043.3 kg)
    Engine Option One
    Make and Model Kubota D902
    Fuel Type Diesel
    Fuel Tank Capacity 7.5 gal
    (28.4 L)
    Gross Horsepower 24.8 hp
    (18.5 kw)
    Cooling System Liquid
    Maximum Angle of Inclination 30 deg
    Track Performance
    Rated Operating Capacity (SAE) 500 lbs
    (226.8 kg)
    Tipping Capacity (With 175 lb (79.38 kg) operator) 1430 lbs
    (648.6 kg)
    Travel Speed 3.5 mph
    (5.6 km/h)
    Ground Pressure (Narrow Tracks) 3.4 psi
    (23.4 kPa)
    Ground Pressure (Wide Tracks) 2.7 psi
    (18.6 kPa)
    Operational
    Steering Single, pilot operated joystick
    Lift Single, dual axis
    Curl Single, dual axis
    Hydraulic System
    Hydraulic System Flow 12.5 gpm
    (47.3 L/min)
    Hydraulic System Pressure 2950 psi
    (203.4 bar)
    Tank capacity 8 gal
    (30.3 L)
    Associated Attachments
    36" Brush Grapple
    Specifications
    Attachments
    Model Name Brush Grapple
    Width 36 "
    (91.4 cm)
    Weight 225 lbs
    (102.1 kg)
    36" Scrap Grapple Bucket
    Specifications
    Attachments
    Model Name Scrap Grapple Bucket
    Width 36 "
    (91.4 cm)
    Weight 315 lbs
    (142.9 kg)
    4-in-1 Bucket
    Specifications
    Attachments
    Model Name 4-in-1 Bucket
    Width 42.5 "
    (108 cm)
    Weight 268 lbs
    (121.6 kg)
    Fill Capacity 5 cu ft
    (.1 cu m)
    42" Brush Grapple
    Specifications
    Attachments
    Model Name Brush Grapple
    Width 42 "
    (106.7 cm)
    Weight 245 lbs
    (111.1 kg)
    42" Rotary Broom
    Specifications
    Attachments
    Model Name Rotary Broom, Manual Angle
    Width 42 "
    (106.7 cm)
    Weight 400 lbs
    (181.4 kg)
    42" Scrap Grapple Bucket
    Specifications
    Attachments
    Model Name Scrap Grapple Bucket
    Width 42 "
    (106.7 cm)
    Weight 335 lbs
    (152 kg)
    48" Rotary Broom
    Specifications
    Attachments
    Model Name Rotary Broom, Manual Angle
    Width 48 "
    (121.9 cm)
    Weight 475 lbs
    (215.5 kg)
    Auger Trench Backfill Attachment
    Specifications
    Attachments
    Model Name Auger Trench Backfill Attachment
    Width 52 "
    (132.1 cm)
    Weight 270 lbs
    (122.5 kg)
    Dozer Blade
    Specifications
    Attachments
    Model Name Dozer Blade
    Width 47 "
    (119.4 cm)
    Weight 120 lbs
    (54.4 kg)
    Dozer Blade with Optional Tilt
    Specifications
    Attachments
    Model Name Dozer Blade with Optional Tilt
    Width 47.8 "
    (121.4 cm)
    Weight 120 lbs
    (54.4 kg)
    Harley Rake
    Specifications
    Attachments
    Model Name Harley rake
    Width 58 "
    (147.3 cm)
    Weight 485 lbs
    (220 kg)
    Hydraulic Boring Attachment
    Specifications
    Attachments
    Model Name Hydraulic Boring Attachment
    Width 25 "
    (63.5 cm)
    Weight 115 lbs
    (52.2 kg)
    Hydraulic Hammer
    Specifications
    Attachments
    Model Name Hydraulic Hammer
    Weight 180 lbs
    (81.7 kg)
    Hammer Diameter 1.8 "
    (4.6 cm)
    Impact Frequency 850 - 1250 bpm
    Energy Class 180
    LG42 Log Grapple
    Specifications
    Attachments
    Model Name LG42
    Length 34 "
    (86.4 cm)
    Width 42 "
    (106.7 cm)
    Weight 285 lbs
    (129.3 kg)
    Land leveler
    Specifications
    Attachments
    Model Name Land Leveler
    Width 49 "
    (124.5 cm)
    Weight 170 lbs
    (77.1 kg)
    Landscape Rake
    Specifications
    Attachments
    Model Name Landscape Rake
    Width 40 "
    (101.6 cm)
    Weight 460 lbs
    (208.7 kg)
    Mini Sod Roller/Unroller
    Specifications
    Attachments
    Model Name Mini Sod Roller/Unroller
    Width 50 "
    (127 cm)
    Weight 160 lbs
    (72.6 kg)
    Multi-task Tool
    Specifications
    Attachments
    Model Name Multi-task tool (includes job pole)
    Width 24 "
    (61 cm)
    Weight 120 lbs
    (54.4 kg)
    Power Shovel
    Specifications
    Attachments
    Model Name Power Shovel
    Width 32 "
    (81.3 cm)
    Weight 162 lbs
    (73.5 kg)
    Rock Bucket
    Specifications
    Attachments
    Model Name Rock Bucket
    Width 42 "
    (106.7 cm)
