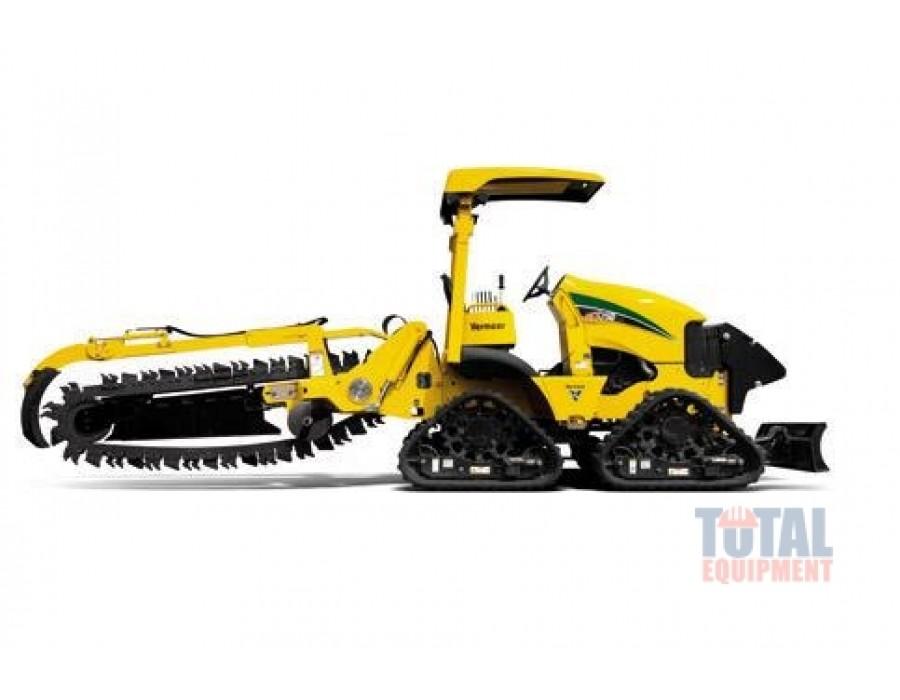

    Vermeer RTX750 General Dimensions and Weights Weight (basic tractor, rub.. Product #: VRTX750

    RTX750

    Item Specs

    Item id: VRTX750

    Model: RTX750

    Year: New

    Location: Call Now


    Contact: 305-343-9099

    Ask Question

    Need more information call us 1-844-868-2537 or email us: info@tercorp.com

    General Dimensions and Weights
    Weight (basic tractor, rubber tires) 5900 lbs
    (2676.2 kg)
    Weight (basic tractor, tracks) 9330 lbs
    (4232 kg)
    Length (basic tractor, rubber tires) 10.5 "
    (26.7 cm)
    Length (basic tractor, tracks) 11.1 "
    (28.2 cm)
    Width (basic tractor, rubber tires) 72 "
    (182.9 cm)
    Width (basic tractor, tracks) 78.5 "
    (199.4 cm)
    Height (basic tractor, rubber tires) 100.3 "
    (254.8 cm)
    Engine Option One
    Make and Model Deutz TD2.9L4
    Gross Horsepower (Maximum) 74 hp
    (55.2 kw)
    Maximum Torque 192 ft-lb
    (260.3 Nm)
    Cooling Medium Liquid
    Fuel Type Diesel
    Emissions rating Tier 4 fina
    Noise Level at Operator's Ear 91 d(B)a
    Engine Option Two
    Make and Model Cummins B3.3T
    Maximum Torque 181 ft-lb
    (245.4 Nm)
    Cooling Medium Water
    Fuel Type Diesel
    Emissions rating Tier 4i (EU Stage IIIB)
    Noise Level at Operator's Ear 95 d(B)a
    Hydraulic System
    Ground drive pump capacity 35 gpm
    (132.5 L/min)
    Ground drive pump relief 4350 psi
    (299.9 bar)
    Attachment pump capacity 35 gpm
    (132.5 L/min)
    Attachment pump relief 5500 psi
    (379.2 bar)
    Auxiliary pump capacity 19.4 gpm
    (73.4 L/min)
    Auxiliary pump relief 2500 psi
    (172.4 bar)
    Capacities
    Fuel Tank 27 gal
    (102.2 L)
    Hydraulic Tank 23 gal
    (87.1 L)
    Hydraulic System 25 gal
    (94.6 L)
    Coolant 3 gal
    (11.4 L)
    Ground Drive - Rubber Tire
    Maximum forward transport speed (high) 5 mph
    (8 km/h)
    Maximum reverse transport speed (high) 5 mph
    (8 km/h)
    Tire size 38" x 14" (96.5 cm x 35.6 cm)
    Ground Drive - Tracks
    Maximum forward transport speed (high) 4 mph
    (6.4 km/h)
    Maximum reverse transport speed (high) 4 mph
    (6.4 km/h)
    Axle Options
    Front Axle Type Steerable planetary with hydraulic differential lock
    Rear Axle Type Steerable planetary with hydraulic differential lock
    Axle load rating (static, per axle) 11250 lbs
    (5102.9 kg)
    Outside Turning Diameter (Rubber Tires, Front Steer Only) 33 '
    (10.1 m)
    Outside turning diameter (tracks, front steer only) 39.5 '
    Outside Turning Diameter (Rubber Tires, Front and Rear Steer) 16.8 '
    (5.1 m)
    Outside turning diameter (tracks, front and rear steer) 23 '
    Service Brake Type Hydrostatic
    Parking Brake Type Spring-applied, hydraulic release
    Associated Attachments
    B750
    Specifications
    RC750 - SN 201 and up
    Specifications

    Model Name RC750
    Weight 858 lbs
    (389.2 kg)
    Reel Shaft Diameter 2.5 "
    (6.4 cm)
    Maximum reel width 48.5 "
    (123.2 cm)
    Maximum Diameter Reel 56 "
    (142.2 cm)
    Capacity 2000 lbs
    (907.2 kg)
    RTX750 Backfill Blade
    Specifications

    Weight 600 lbs
    (272.2 kg)
    Width 72 "
    (182.9 cm)
    Height 14.6 "
    (37.1 cm)
    Maximum Swing Angle 30 deg
    Maximum Lift Above Ground 25.6 "
    (65 cm)
    Maximum Drop Below Ground 16.3 "
    (41.4 cm)
    Maximum Tilt Angle 12 deg
    SO750
    Specifications

    Model Name SO750
    Drive Type Hydrostatic
    Weight (48 " (121.92 cm) boom, no chain) 2830 lbs
    (1283.7 kg)
    Length (Minimum Transport) 94 "
    (238.8 cm)
    Maximum Trench Depth 60 "
    (152.4 cm)
    Maximum Trench Width 12 "
    (30.5 cm)
    Minimum Trench Width 6 "
    (15.2 cm)
    Maximum offset 24 "
    (61 cm)
    TR750
    Specifications
    VP750
    Specifications

    Model Name VP750
    Drive Type Hydrostatic
    Weight Without Blade 1500 lbs
    (680.4 kg)
    Length (Minimum Transport) 74.3 "
    (188.7 cm)
    Shaker Force (Maximum RPM) 24000 lbs
    (10886.2 kg)
    Maximum Plow Steer Angle 30 deg
    Maximum Swing Angle 30 deg
    Maximum Plow Depth (Rubber Tires) 30 "
    (76.2 cm)
    Maximum Plow Depth (Tracks) 36 "
    (91.4 cm)
