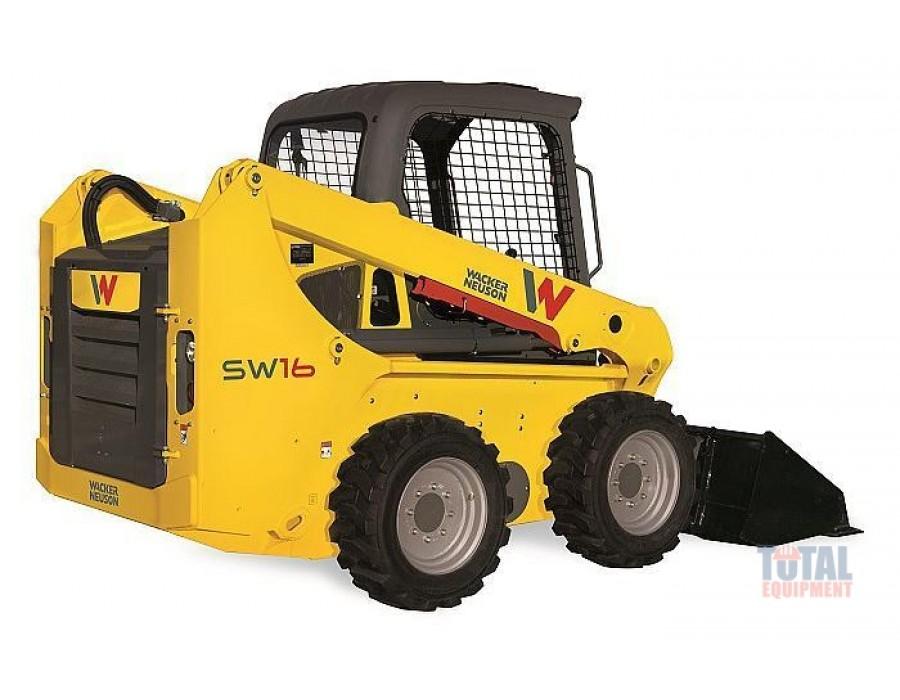

Skid Steer
Item Specs
Item id: SW16
Model: Skid Steer
Location: San Juan, PR
Contact: 787-748-0000
Need more information call us 1-844-868-2537 or email us: info@tercorp.com
SW16
Operating data |
|
| Height top of ROPS | 81.5 in |
| Overall length w/ bucket | 134.9 in |
| Overall length w/o bucket | 106.6 in |
| Operating weight | 6,170 lb |
| Height Hinge Pin Max | 118.1 in |
| Rated Operating Capacity 50% | 1,600 lb |
| Dump reach | 34.1 in |
| Dump height max. at max height | 90.6 in |
| Angle of departure | 24 ° |
| Tipping angle (bucket dump) w/bucket at max height | 42 ° |
| Ground clearance | 7.6 in |
| Breakout force max. - Bucket | 5,300 lbf |
| Breakout force max. - Boom | 5,000 lbf |
| Width | 65.9 in |
| Wheelbase | 43.5 in |
Engine / Motor |
|
| Engine / Motor manufacturer | Kohler |
| Engine / Motor | KDI 1903 TCR |
| Engine performance | 56 hp |
| Displacement | 113.6 in³ |
| RPM / speed | 2,750 rpm |
| Battery | 950 Ah |
| Fuel tank capacity | 30 US gal |
Hydraulic system |
|
| Auxiliary Hydraulics- Standard Flow | 20 US gpm |
| Pressure Aux. relief | 3,500 psi |
| Hydraulic oil tank | 2.9 US gal |
Power transmission |
|
| Travel speed Low | 8 mph |
| Travel speed High | 12 mph |
| Standard tires | 10 x 16.5 |
 |
